iSWEEP | SKU:
ISCSS-A7CO

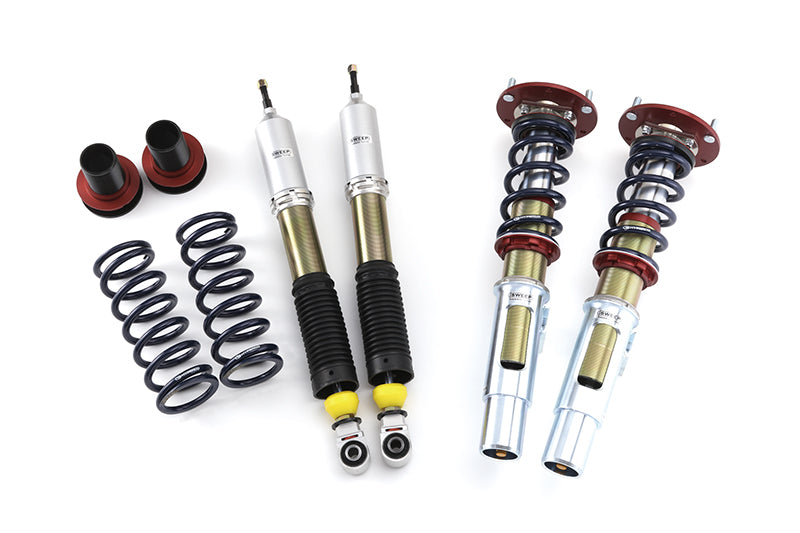

iSWEEP Suspension System COMPETITION ISCSS-A7CO
¥418,000
Unit price
/
Unavailable
Tax included
This is a suspension system for sports driving. It was developed and set up with circuit driving in mind. Its features are that it is a full-length system, yet has sufficient stroke, making it easy to control load and improve tire contact with the ground. This suspension system will definitely help you improve your time. It is a "foot" that allows you to attack more dynamically and aggressively - that is "Competition".
iSWEEP Suspension System COMPETITION ISCSS-A7CO is backordered and will ship as soon as it is back in stock.
◾️How to Purchase in North America
This product cannot be sold directly from Japan to customers in North America. Please purchase it from our authorized distributors listed on the following website.
iSWEEP Suspension System COMPETITION ISCSS-A7CO
¥418,000
Unit price
/
Unavailable
■フロント仕様

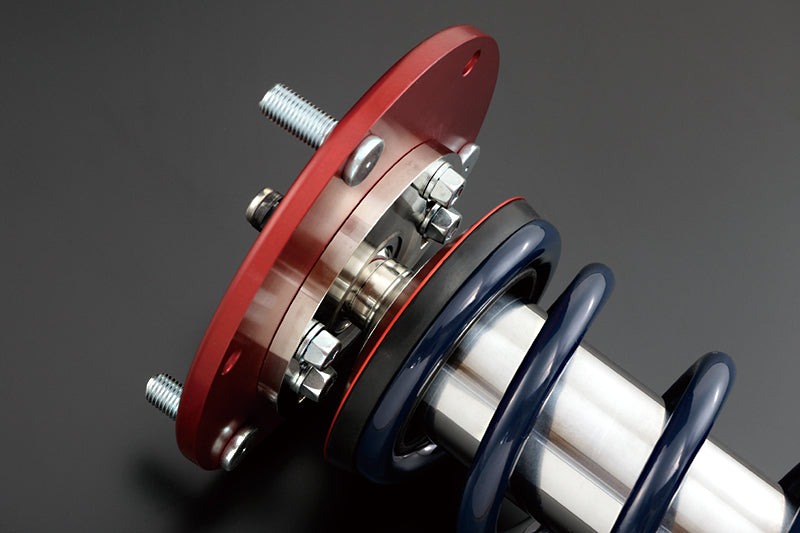

単筒倒立式、全長調整式車高調整、ピロアッパーマウント、キャンバー調整機能付、24段階減衰力調整、コイルスプリングに「HYPERCO」又は「Eibach ERS」を使用。スプリングレート及び自由長は仕様に合わせた選択が可能です。 キャンバーの調整はサスペンションを外さずに調整が可能です。
■リア仕様
単筒式、車高調整、24段階減衰力調整、コイルスプリングに「HYPERCO」又は「Eibach ERS」を使用。スプリングレート及び自由長は仕様に合わせた選択が可能です。
■ Competition

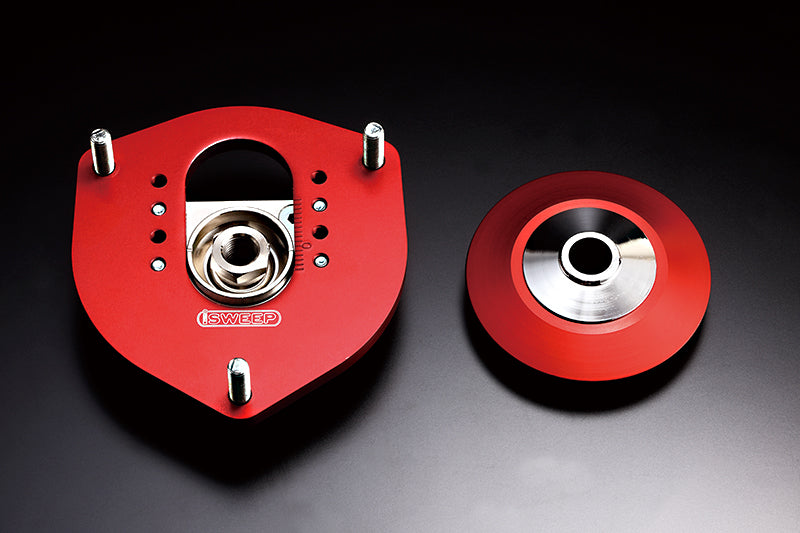

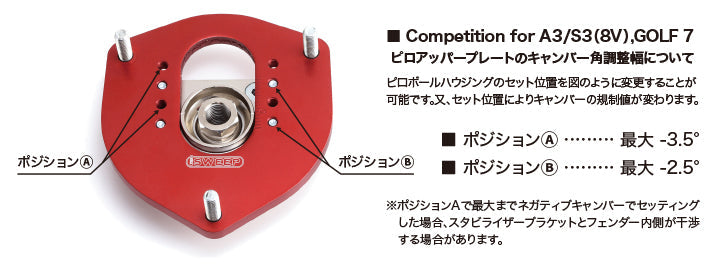

□ キャンバー調整式ピロアッパーマウント
AUDI:A3（8P）/TT（8J）/S3（8P）
VW：GOLF5/6/EOS/PASSAT/SCIROCCO
AUDI:A3（8V）/TT（8S）/S3（8V）
VW：GOLF7
■ Competition / Sport

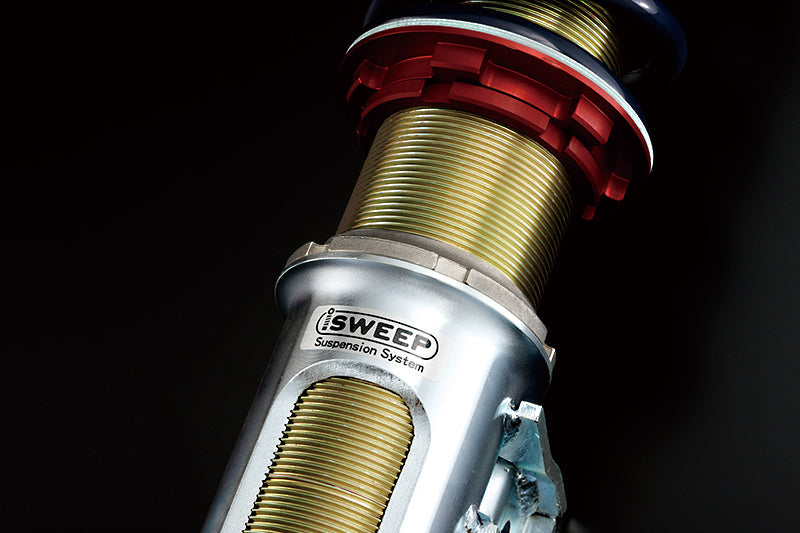

□ フロント全長調整式
□ フロント 単筒倒立式 24段減衰力調整式
□ リア 単筒式 24段減衰力調整式
|
■オーバーホール基本作業メニュー |
|||
|
コード |
作業内容 | 工賃（税込） | |
| OH001 | フロントダンパー（倒立） オーバーホール | ¥16,500/1本 | |
| ★フロントダンパーオーバーホールの基本作業内容 | |||
| ・ダンパー分解/組立、部品洗浄、消耗具合確認、消耗部品交換、減衰力テスターチェック | |||
| ※上記金額以外に別途消耗部品代がかかります。又、オプション作業の追加についても別途費用がかかります。 | |||
| OH002 | リアダンパー オーバーホール | ¥15,400/1本 | |
| ★リアダンパーオーバーホールの基本作業内容 | |||
| ・ダンパー分解/組立、部品洗浄、消耗具合確認、消耗部品交換、減衰力テスターチェック | |||
| ※上記金額以外に別途消耗部品代がかかります。又、オプション作業の追加についても別途費用がかかります。 | |||
| OH003 | 新品ダンパー分解/組立 フロント/リア共通 | ¥11,000/1本 | |
| ★購入取付日より3ヶ月もしくは、走行3,000km以内のダンパー分解/組立作業 | |||
| ・主としてユーザーの要望によるスプリングレート変更等に伴う減衰力の仕様変更、 ショートストローク加工などの分解・組立基本作業 |
|||
| ※上記金額以外に別途使用部品代等がかかります。 又、仕様変更、ショートストローク加工等のオプション作業についても別途費用がかかります。 |
|||
|
■オプション作業メニュー |
|||
|
コード |
作業内容 | 工賃（税込） | |
| OH004 | 減衰力変更（バルブシム代含む） | ¥5,500/1本 | |
| OH005 | ショートストローク加工（部品代別） | ¥2,200/1本 | |
| OH006 | ピストンロッド交換（部品代別） | ¥4,400/1本 | |
| OH007 | シリンダー交換（部品代別） | ¥2,200/1本 | |
| OH008 | アジャストケース交換（部品代別） | ¥4,400/1本 | |
| OH009 | エンドアイブッシュ交換（部品代別） | ¥4,400/1本 | |
| OH010 | エンドアイブッシュ加工 | ¥6,600/1本 | |
| OH011 | ピロアッパーセレーションボルト1本交換（部品代別） | ¥2,200 | |
| OH012 | ピロアッパーベアリング交換（部品代別） | ¥2,200/1本 | |
| OH013 | 減衰力測定（クリックポジション3ヵ所の性能図） | ¥11,000/1本 | |
|
■交換使用部品の代表例 |
|||
|
コード |
部品名 | 部品代（税込） | |
| *** | O-RING 各種 | ¥110/個～ | |
| *** | ロッドシール | ¥1,100/個 | |
| *** | ダストシール 各種 | ¥1,540/個～ | |
| *** | メタルブッシュ 各種 | ¥1,760/個～ | |
| *** | 樹脂リング 各種 | ¥440/個～ | |
| *** | ガス封入口ラバー | ¥220/個 | |
| *** | ピロアッパーベアリング | ¥7,150/個 | |
| *** | ピストンロッド各種 | ¥8,800/本～ | |
| ※著しく性能低下を招く加工依頼、危険を招く加工依頼についてはお受け致しかねる場合もあります。 ※ショックアブソーバーの脱着工賃、並びに発送料金についてはお客様のご負担となります。 |
|||
|
■ AUDI |
||||
|
Car model |
Year | specification | Part number | |
| A3(8P) | All Model | 2004-2005 | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
|
A3(8V) 4Link Suspension |
SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP | ||
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| TT(8J) | All Model | 2007-2015 | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
| TT(8S) | All Model | 2016- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| S3(8P) | 2009-2013 | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP | |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
| S3/RS3(8V) | 2014- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP | |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| S3/RS3(8Y) | 2021- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP | |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
|
■ VOLKSWAGEN |
||||
|
Car model |
Year | specification | Part number | |
| GOLF5 | All Model | 2004-2009 | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
| GOLF6 | All Model | 2009-2013 | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
|
GOLF7/7.5 4Link Suspension |
SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP | ||
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| GOLF8 | All Model | 2022- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| ARTEON | All Model | 2017- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A7SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A7CO | |||
| SCIROCCO | All Model | 2009- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-A5SP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-A5CO | |||
| POLO (AW) | All Model | 2018- | SPORT: Single-tube inverted type/24-stage damping force adjustment/front and rear full-length type | ISCSS-AWSP |
| COMPETITION: Single-tube inverted type/24-stage damping force adjustment/Front and rear full-length type + front pillow upper | ISCSS-AWCO | |||
| MAKE | MODEL | ENGINE | YEAR | ENGINE MODEL |
|---|---|---|---|---|
| AUDI | A3 (8V) Sportback | 1.8 TFSI Quattro | 2014-2017 | 8VCJSF |
| AUDI | A3 (8V) Sportback | 2.0 TFSI Quattro | 2017-2019 | 8VCZPF |
| AUDI | A3 (8V) Sportback | 40 TFSI Quattro (2.0 TFSI Quattro | 2019-2020 | 8VCZPF |
| AUDI | A3 (8V) Sedan | 1.8 TFSI Quattro | 2014-2017 | 8VCJSL |
| AUDI | A3 (8V) Sedan | 2.0 TFSI Quattro | 2017-2019 | 8VCZPL |
| AUDI | A3 (8V) Sedan | 40 TFSI Quattro (2.0 TFSI Quattro) | 2019-2020 | 8VCZPL |
| AUDI | TT (8S) | 1.8 TFSI | 2016- | FVCJS |
| AUDI | TT (8S) | 2.0 TFSI | 2016- | FVCHH |
| AUDI | TT (8S) | 40 TFSI (2.0 TFSI) | 2019- | FVDKZ |
| AUDI | TT (8S) | 2.0 TFSI Quattro | 2016- | FVCHHF |
| AUDI | TT (8S) | 45 TFSI Quattro (2.0 TFSI Quattro) | 2019-2021 | FVCHHF |
| AUDI | TT (8S) | 45 TFSI Quattro (2.0 TFSI Quattro) | 2021 | FVDKTF |
| AUDI | TT (8S) | 45 TFSI Quattro (2.0 TFSI Quattro) | 2022- | FVDNPF |
| AUDI | TT (8S) | TTS 2.0 TFSI Quattro | 2016-2021 | FVCJXF |
| AUDI | TT (8S) | TTS 2.0 TFSI Quattro | 2021 | FVDNUF |
| AUDI | TT (8S) | TTS 2.0 TFSI Quattro | 2022- | FVDNFF |
| AUDI | TT (8S) | TT RS | 2017- | FVDAZF |
| AUDI | S3 (8V) Sportback | 2.0 TFSI Quattro | 2014-2021 | 8VCJXF/8VDJHF |
| AUDI | S3 (8V) Sedan | 2.0 TFSI Quattro | 2014-2021 | 8VCJXL/8VDJHL |
| AUDI | S3 (8Y) Sportsback | 2.0 TFSI Quattro | 2021-2024 | GYDNFF |
| AUDI | S3 (8Y) Sedan | 2.0 TFSI Quattro | 2021-2024 | GYDNFF |
| AUDI | RS3 (8V) Sportback | 2.5 TFSI Quattro | 2016-2022 | 8VCZGF/8VDAZF |
| AUDI | RS3 (8V) Sedan | 2.5 TFSI Quattro | 2017-2022 | 8VCZGL/8VDAZL |
| AUDI | RS3 (8Y) Sportback | 2.5 TFSI Quattro | 2022- | GYDNWF |
| AUDI | RS3 (8Y) Sedan | 2.5 TFSI Quattro | 2022- | GYDNWF |
| Volkswagen | GOLF7 | GTI | 2014-2017 | AUCHH |
| Volkswagen | GOLF7 | GTI Performance | 2015 | AUCHH |
| Volkswagen | GOLF7 | GTI Clubsport | 2016 | AUCJX |
| Volkswagen | GOLF7 | R | 2014-2017 | AUCJXF |
| Volkswagen | GOLF7 Variant | R | 2015-2017 | AUCJXF |
| Volkswagen | GOLF7.5 | GTI | 2017-2021 | AUCHH |
| Volkswagen | GOLF7.5 | GTI Dynamic | 2018 | AUCHH |
| Volkswagen | GOLF7.5 | GTI Performance | 2017-2021 | AUDLB |
| Volkswagen | GOLF7.5 | GTI TCR | 2019 | AUDNU |
| Volkswagen | GOLF7.5 | R 6MT | 2017-2021 | AUCJXF |
| Volkswagen | GOLF7.5 | R DSG | 2017-2021 | AUDJHF |
| Volkswagen | GOLF7.5 | R Performance | 2018-2021 | AUDJHF |
| Volkswagen | GOLF7.5 Variant | R DSG | 2017-2021 | AUDJHF |
| Volkswagen | GOLF8 | GTI | 2022-2024 | CDDNP |
| Volkswagen | GOLF8 | R | 2022-2024 | CDDNFF |
| Volkswagen | GOLF8 | R 20 Years | 2023-2024 | CDDNFF |
| Volkswagen | GOLF8 Variant | R | 2022-2024 | CDDNFV |
